Universal Cables Ltd.

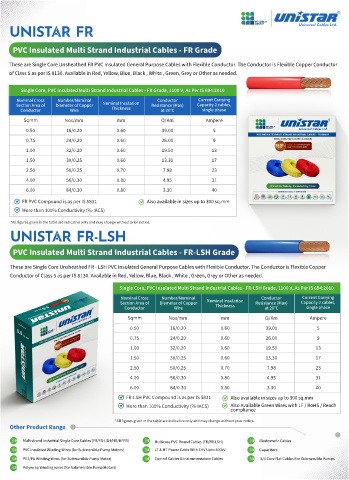

UNISTAR FR

PVC Insulated Multi Strand Industrial Cables - Fr Grade
PVC Insulated Multi Strand Industrial Cables - FR Grade

These are Single Core Unsheathed FR PVC Insulated General Purpose Cables with Flexible Conductor. The Conductor is Flexible Copper Conductor
of Class 5 as per IS 8130. Available in Red, Yellow, Blue, Black , White , Green, Grey or Other as needed.

Single Core, PVC Insulated Multi Strand Industrial Cables - FR Grade, 1100 V, As Per IS 694:2010
Nominal Cross Number/Nominal Conductor Current Carrying
Section Area of Diameter of Copper Nominal Insulation Resistance (Max) Capacity 2 cables,
Conductor Wire Thickness at 20°C single phase
Ampere
Nos/mm
Sqmm
mm
Sqmm Nos/mm mm Ω/Km Ampere
Ω/Km
0.50 16/0.20 0.60 39.00 5
0.75 24/0.20 0.60 26.00 9
1.00 32/0.20 0.60 19.50 13
1.50 30/0.25 0.60 13.30 17
2.50 50/0.25 0.70 7.98 23

4.00 56/0.30 0.80 4.95 31
6.00 84/0.30 0.80 3.30 40
FR PVC Compound is as per IS 5831 Also available in sizes up to 300 sq.mm
More than 100% Conductivity (%-IACS)

*All figures given in the table are indicative only and may change without prior notice.
UNISTAR FR-LSH

PVC Insulated Multi Strand Industrial Cables - FR-LSH Grade

These are Single Core Unsheathed FR - LSH PVC Insulated General Purpose Cables with Flexible Conductor. The Conductor is Flexible Copper
Conductor of Class 5 as per IS 8130. Available in Red, Yellow, Blue, Black , White , Green, Grey or Other as needed.

Single Core, PVC Insulated Multi Strand Industrial Cables - FR-LSH Grade, 1100 V, As Per IS 694:2010
Nominal Cross Number/Nominal Conductor Current Carrying
Section Area of Diameter of Copper Nominal Insulation Resistance (Max) Capacity 2 cables,
Conductor Wire Thickness at 20°C single phase
Ampere
Sqmm
Sqmm Nos/mm mm Ω/Km Ampere
mm
Nos/mm
Ω/Km
0.50 16/0.20 0.60 39.00 5
0.75 24/0.20 0.60 26.00 9
1.00 32/0.20 0.60 19.50 13
1.50 30/0.25 0.60 13.30 17
2.50 50/0.25 0.70 7.98 23

4.00 56/0.30 0.80 4.95 31
6.00 84/0.30 0.80 3.30 40
FR-LSH PVC Compound is as per IS 5831 Also available in sizes up to 300 sq.mm
More than 100% Conductivity (%-IACS) Also Available Green Wires with LF / RoHS / Reach
compliance

*All figures given in the table are indicative only and may change without prior notice.
Other Product Range

Multistrand Industrial Single Core Cables (FR/FR-LSH/HR/HFFR) Multicore PVC Round Cables (FR/FR-LSH) Elastomeric Cables
PVC Insulated Winding Wires (for Submersible Pump Motors) LT & HT Power Cable With EHV Upto 400kV Capacitors
PE2/PA Winding Wires (for Submersible Pump Motor) Control Cables & Instrumentation Cables 3/4 Core Flat Cables For Submersible Pumps
Polywrap Winding wires (for Submersible Pump Motors)
