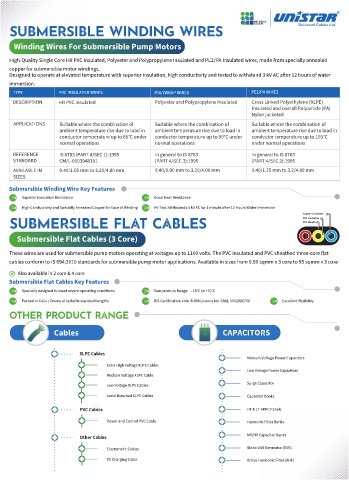

SUBMERSIBLE WINDING WIRES
Winding Wires For Submersible Pump Motors

High-Quality Single Core HR PVC Insulated, Polyester and Polypropylene Insulated and PE2/PA Insulated wires, made from specially annealed
copper for submersible motor windings.
Designed to operate at elevated temperature with superior insulation, high conductivity and tested to withstand 3 kV AC a er 12 hours of water
immersion.
TYPE PVC INSULATED WIRES POLYWRAP WIRES PE2/PA WIRES
DESCRIPTION HR PVC Insulated Polyester and Polypropylene Insulated Cross Linked Polyethylene (XLPE)
Insulated and overall Polyamide (PA)
Nylon jacketed
APPLICATIONS Suitable where the combination of Suitable where the combination of Suitable where the combination of
ambient temperature rise due to load in ambient temperature rise due to load in ambient temperature rise due to load in
conductor temperature up to 85°C under conductor temperature up to 90°C under conductor temperature up to 105°C
normal operations normal operations under normal operations
REFERENCE IS 8783 (PART 4/SEC 1):1995 In general to IS 8783 In general to IS 8783
STANDARD CM/L-0003948281 (PART 4/SEC 3):1995 (PART 4/SEC 2):1995
AVAILABLE IN 0.40/1.05 mm to 3.20/4.80 mm 0.40/0.90 mm to 3.20/4.00 mm 0.40/1.25 mm to 3.2/4.80 mm
SIZES
Submersible Winding Wire Key Features
Superior Insulation Resistance Good Heat Resistance
High Conductivity and Specially Annealed Copper for Ease of Winding HV Test: Withstands 3 kV AC for 1 minute after 12 Hours Water immersion
Copper Conductor
PVC Insulation
SUBMERSIBLE FLAT CABLES PVC Sheath
Submersible Flat Cables (3 Core)

These wires are used for submersible pump motors operating at voltages up to 1100 volts. The PVC insulated and PVC sheathed three-core flat
cables conform to IS 694:2010 standards for submersible pump motor applications. Available in sizes from 0.50 sqmm x 3 core to 95 sqmm x 3 core
Also available in 2 core & 4 core
Submersible Flat Cables Key Features
Specially designed to meet severe operating conditions Temperature Range: - 15°C to +70°C
Packed in Coils / Drums of suitable standard lengths BIS Certification vide IS 694 Licence No. CM/L 0002916768 Excellent flexibility
OTHER PRODUCT RANGE

Cables CAPACITORS

XLPE Cables
Medium Voltage Power Capacitors
Extra High Voltage XLPE Cables
Low Voltage Power Capacitors
Medium Voltage XLPE Cable
Surge Capacitor
Low Voltage XLPE Cables
Aerial Bunched XLPE Cables Capacitor Banks

PVC Cables HT & LT APFC Panels

Power and Control PVC Cable Harmonic Filter Banks

Other Cables MV/HV Capacitor Banks
Elastomeric Cables Static VAR Generator (SVG)
EV Charging Cable Active Harmonic Filter (AHF)
