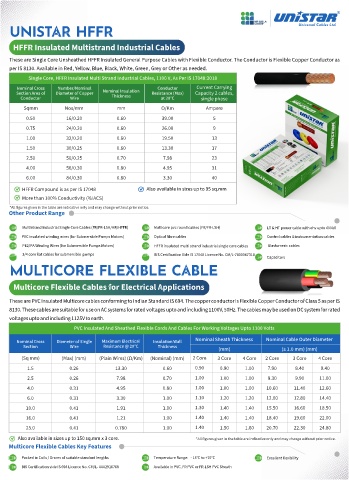

UNISTAR HFFR

HFFR Insulated Multistrand Industrial Cables

These are Single Core Unsheathed HFFR Insulated General Purpose Cables with Flexible Conductor. The Conductor is Flexible Copper Conductor as
per IS 8130. Available in Red, Yellow, Blue, Black, White, Green, Grey or Other as needed.
Single Core, HFFR Insulated Multi Strand Industrial Cables, 1100 V, As Per IS 17048:2018
Current Carrying
Nominal Cross Number/Nominal Conductor Current Carrying
Capacity 2 cables,
Section Area of Diameter of Copper Nominal Insulation Resistance (Max) Capacity 2 cables,
single phase
Conductor Wire Thickness at 20°C single phase
Sqmm
Sqmm Nos/mm mm Ω/Km Ampere
Ω/Km
Ampere
Nos/mm
mm
0.50 16/0.20 0.60 39.00 5
0.75 24/0.20 0.60 26.00 9
1.00 32/0.20 0.60 19.50 13
1.50 30/0.25 0.60 13.30 17
2.50 50/0.25 0.70 7.98 23
4.00 56/0.30 0.80 4.95 31
6.00 84/0.30 0.80 3.30 40
HFFR Compound is as per IS 17048 Also available in sizes up to 95 sq.mm
More than 100% Conductivity (%IACS)
*All figures given in the table are indicative only and may change without prior notice.
Other Product Range

Multistrand Industrial Single Core Cables (FR/FR-LSH/HR/HFFR) Multicore pvc round cables (FR/FR-LSH) LT & HT power cable with ehv upto 400kV
PVC insulated winding wires (for Submersible Pumps Motors) Optical fibre cables Control cables & instrumentation cables
PE2/PA Winding Wires (for Submersible Pumps Motors) HFFR insulated multi strand industrial single core cables Elastomeric cables
3/4 core flat cables for submersible pumps BIS Certification Vide IS 17048 Licence No. CM/L-7800067318
Capacitors
MULTICORE FLEXIBLE CABLE

Multicore Flexible Cables for Electrical Applications

These are PVC Insulated Multicore cables conforming to Indian Standard IS 694. The copper conductor is Flexible Copper Conductor of Class 5 as per IS
8130. These cables are suitable for use on AC systems for rated voltages upto and including 1100V, 50Hz. The cables may be used on DC system for rated
voltages upto and including 1125V to earth.
PVC Insulated And Sheathed Flexible Cords And Cables For Working Voltages Upto 1100 Volts

Nominal Cross Diameter of Single Maximum Electrical Insulation Wall Nominal Sheath Thickness Nominal Cable Outer Diameter
Section Wire Resistance @ 20°C Thickness (mm) (± 1.0 mm) (mm)
(Sq mm) (Max) (mm) (Plain Wires) (Ω/Km) (Nominal) (mm) 2 Core Ampere 3 Core 4 Core 2 Core 3 Core 4 Core
Sqmm
Nos/mm
Ω/Km
mm
1.5 0.26 13.30 0.60 0.90 0.90 1.00 7.90 8.40 9.40
2.5 0.26 7.98 0.70 1.00 1.00 1.00 9.30 9.90 11.00
4.0 0.31 4.95 0.80 1.00 1.00 1.00 10.60 11.40 12.60
6.0 0.31 3.30 1.00 1.10 1.20 1.20 12.00 12.80 14.40
10.0 0.41 1.91 1.00 1.30 1.40 1.40 15.50 16.60 18.50
16.0 0.41 1.21 1.00 1.40 1.40 1.40 18.40 19.60 22.00
25.0 0.41 0.780 1.00 1.40 1.50 1.60 20.70 22.30 24.80
Also available in sizes up to 150 sq.mm x 3 core. *All figures given in the table are indicative only and may change without prior notice.
Multicore Flexible Cables Key Features
Packed in Coils / Drums of suitable standard lengths Temperature Range: - 15°C to +70°C Excellent flexibility
BIS Certification vide IS 694 Licence No. CM/L- 0002916768 Available in PVC, FR PVC or FR-LSH PVC Sheath
